Description

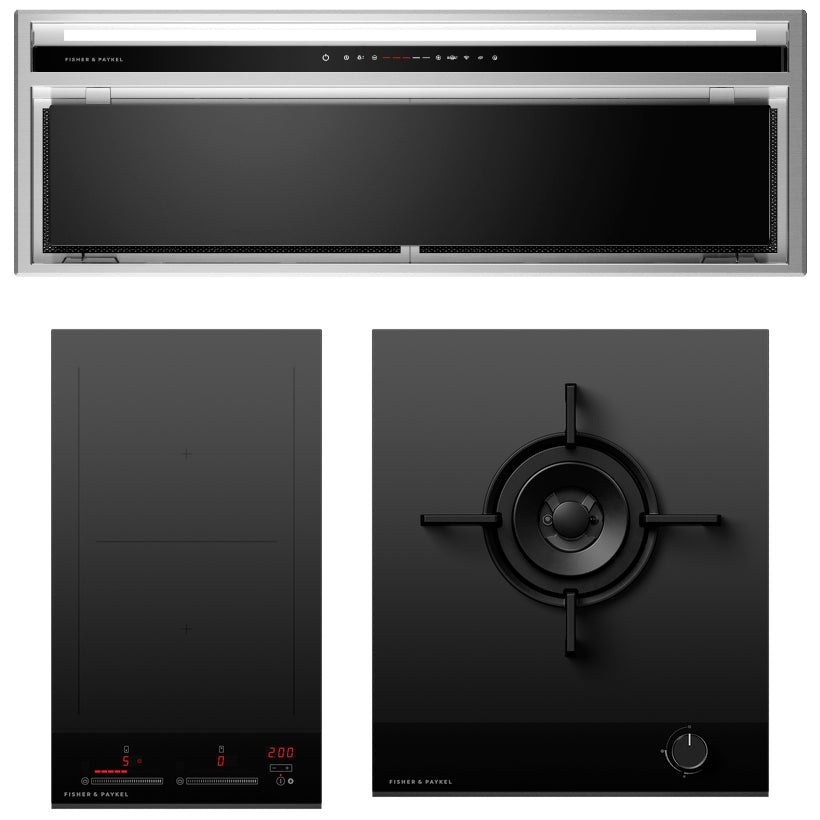

Specifications of HP90IDCHX4 Integrated Insert Wall Rangehood

Installation and cleaning
Dishwasher safe filters	2
Ducted	Top extraction
Recirculation	Optional - top extraction



Performance
Extraction type	Perimeter
Fan speeds	3
Filter type	Mesh with perimeter extraction
Number of filters	2

Product dimensions
Depth	280mm
Height	316mm
Width	830mm



Ventilation features
Auto-off/Run-on timer
Dimmable lights
Filter cleaning alert
Light type	LED strip
Timer function



Specifications of CI302DTB4 Induction Hob

Cleaning	Flat easy clean glass surface Pan detection system
Control	Auto cut-off timer for each zone Minute timer Soft-touch electronic controls Touch and slide controls
Zone Ratings	Left front: 2100W Left front zone (PowerBoost set): 3700W Left rear: 2100W Left rear zone (PowerBoost set): 3700W
Performance	Auto heat reduce Gentle heat 9 Heat settings Induction cooking technology PowerBoost SmartZone Zone bridging
Product Dimensions	Height: 54mm Width: 300mm Depth: 530mm
Safety	Individual hot surface indicators Keylock Pan detection system Safety time out Spillage auto off Surface hot indicators
Power requirements	Amperage: 16A Supply voltage: 220-240V



Specifications of CG451D 45cm 1-Burner Gas Hob

Performance	Cast iron trivets Electronic ignition LPG/Town gas models Quick connect gas valves
Burner Ratings	4.5kW (LPG) 4.6kW (Town Gas)
Controls	Dual wok control Ergonomic control dials Toughened fused glass graphics
Cleaning	Easy clean cooktop design Quick component removal
Safety	Flame failure system
Accessories	Small pan support Wok stand
Supply voltage	230 - 240V
Amperage	10A
Product Dimensions	>Depth 530mm Height 124mm Width 450mm
