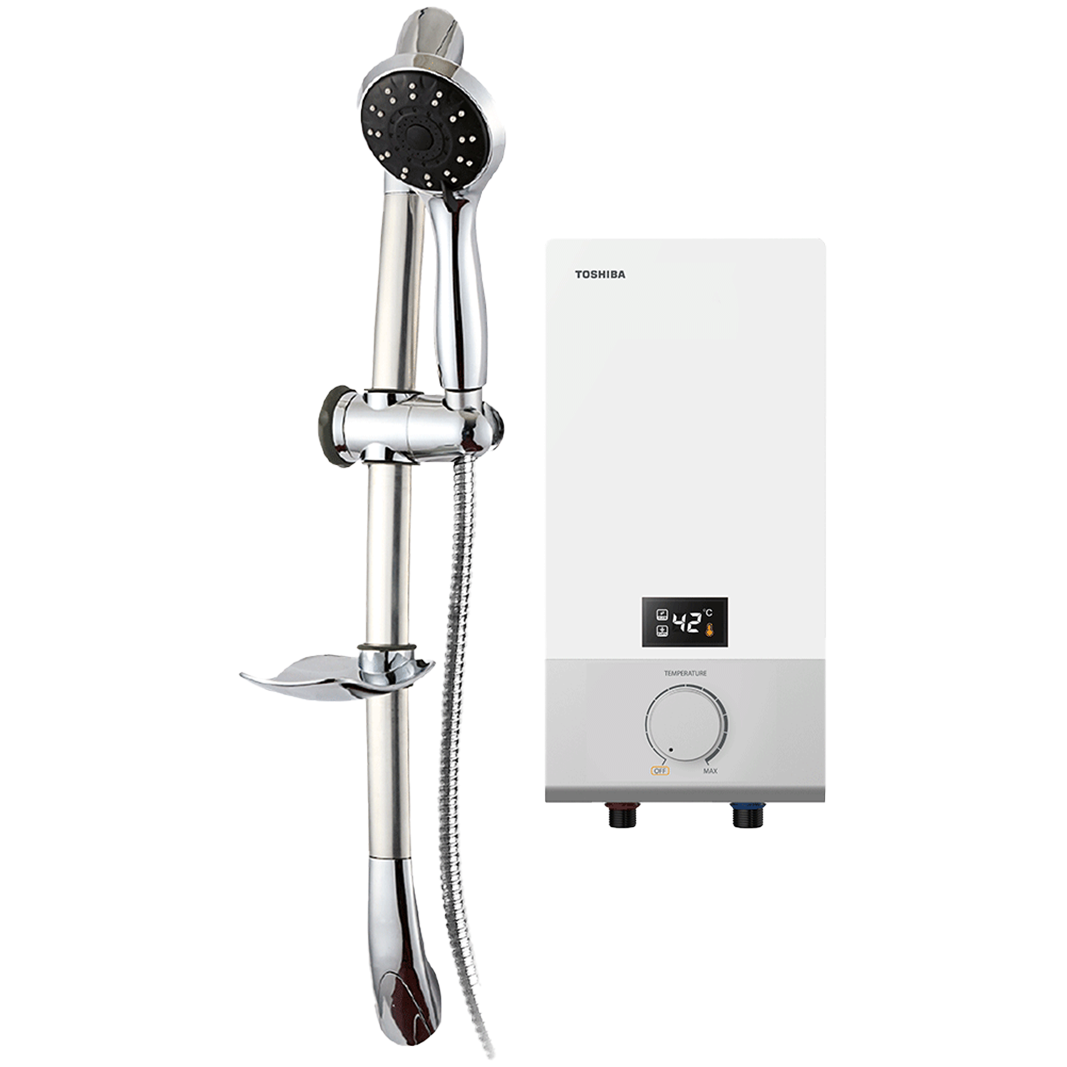

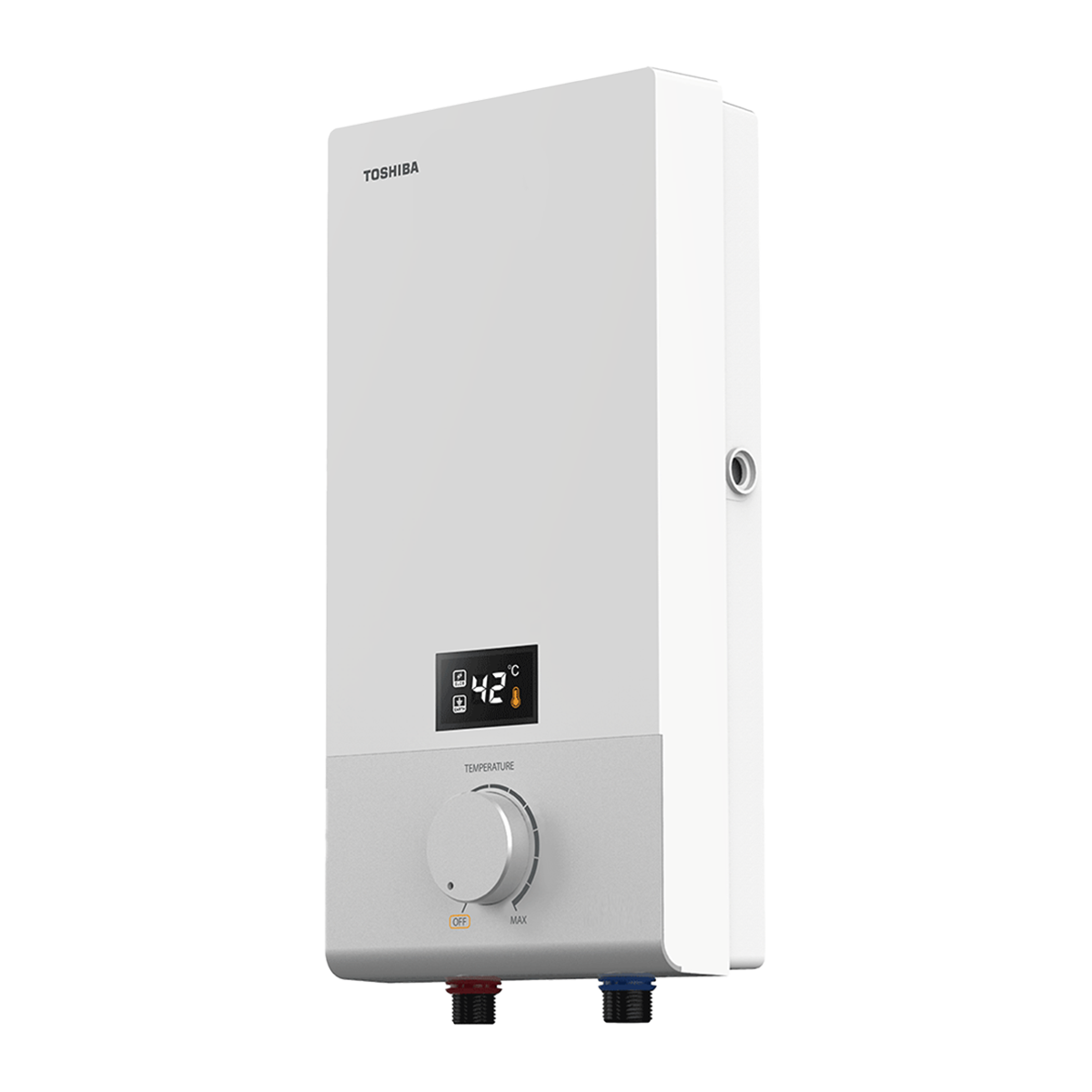

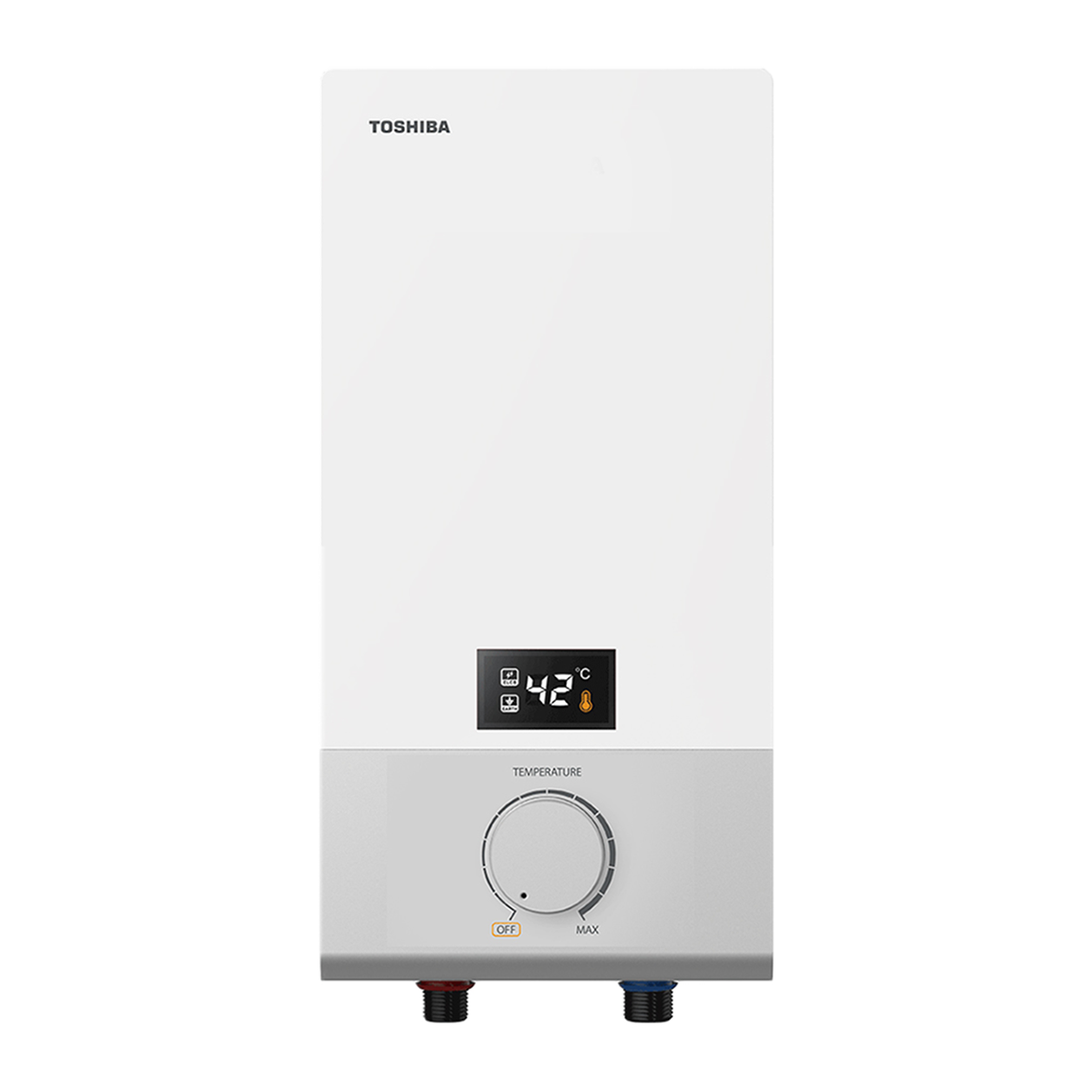

DSK33ES5SW INSTANT WATER HEATER

APPLICATION VOLTAGE	230V±10% .Extreme conditions 260V
APPLICABLE AIR HUMIDITY	50-98%RH
DISCONNECT MODE	Double Disconnection
STRONG CONNECTION	Japan JST Connector
POWER SUPPLY VOLTAGE & FREQUENCY (V/HZ)	230V~,1Ph 50Hz
POWER COMSUPTION	3300W
RATED CURRENT	14.3A
MINIMUM INLET PRESSURE	0.03MPa
MAXIMUM INLET PRESSURE	0.3MPa
MAX OUTLET WATER TEMPERATURE(°C)	48℃
CONSTANT TEMPERATURE PERFORMANCE	±2℃
TANK/HEATING ELEMENT COMPONENTS LIFE TIME	10 years
RATED PRESSSURE	0 MPa
MINIMUM FLOW RATE	1.5L/min
INLET AND OUTLET PIPE JOINT DIMENSION	G1/2″
OPERATING CONDITION	Open type
PUMP	No
APPLICABLE WATER PRESSURE	0.03～0.3Mpa
FEED WATER TEMPERATURE	5～40℃
APPLICABLE FEED WATER	Tap water, TDS≤450mg/L

Material
HEATING TUBE MATERIAL	PA66+30%GF
FRONT HOUSING MATERIALS(ABS/PP/HIPS)	ABS
BACK BASE MATERIALS (ABS/PP/HIPS)	ABS
THE INLET / OUTLET PIPE MATERIALS	PA66+30%GF
HEATING TUBE MATERIAL	Copper
WATER PROOF CLASS Color White Capacity 3300W Application voltage 230V±10% .Extreme conditions 260V Applicable air humidity 50-98%RH Disconnect mode Double Disconnection Strong Connection Japan JST Connector Power Supply Voltage & Frequency (V Hz) 230V~,1Ph 50Hz Power Comsuption 3300W Rated current 14.3A Minimum Inlet Pressure 0.03MPa Maximum Inlet Pressure 0.3MPa Max Outlet Water Temperature (°C) 48℃ Constant Temperature Performance ±2℃ Heating Element Life Time 6 years Minimum Flow Rate 1.5L/min Operating Condition Open type Pump No Applicable Water Pressure 0.03～0.3Mpa Feed Water Temperature 5～40℃ Applicable Feed Water Tap water, TDS≤450mg/L Rated Pressure 0 MPa Inlet and Outlet pipe joint Dimension G1/2″	IP25
PROTECTION CLASS	Class I
